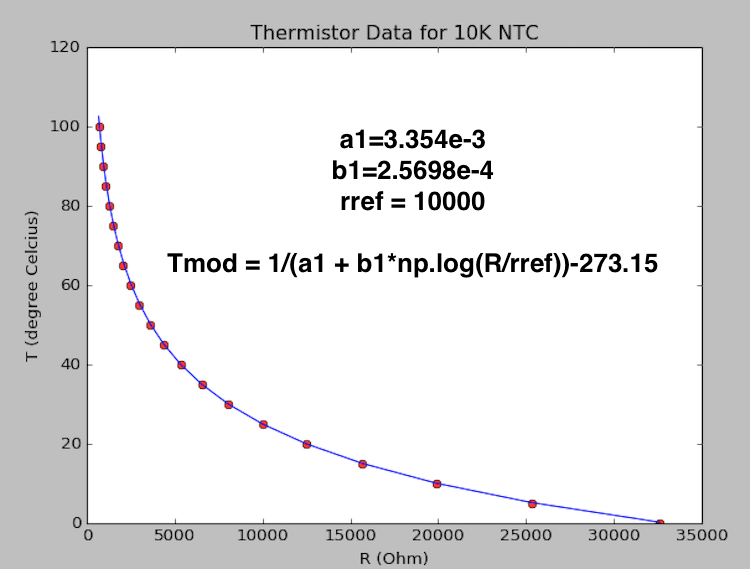

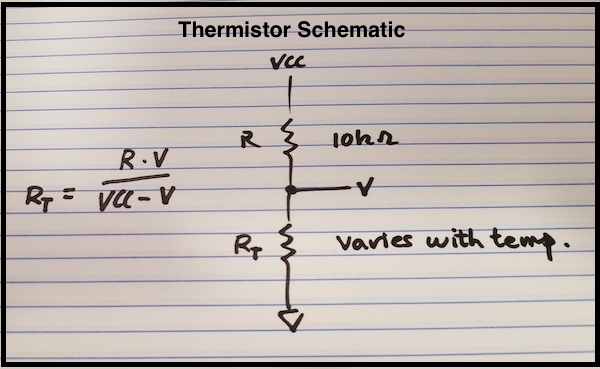

### Thermistor [Thermistor datasheet](https://www.vishay.com/docs/29049/ntcle100.pdf) ![pic](./thermistor_schem.jpg) A thermistor is a device whose resistance varies as a function of temperature. It is typically used in a voltage divider circuit. Below is the data from the datasheet. T as a function of R between 0 and 100 C. ![Thermistor](./Thermistor_data.png) [Tutorial on using a thermistor](https://create.arduino.cc/projecthub/Marcazzan_M/how-easy-is-it-to-use-a-thermistor-e39321) Our datasheet gives the formula for converting resistance to temperature in a slightly different way than this tutorial. Here's the data and the fit, using the datasheet formula. ![](Thermistor_modeled.png) Now we can confidently use this formula in the Arduino Here is a Thermistor-reading Arduino code: ``` int ThermistorPin = A0; int Vo; float R1 = 10000; float R2, T; float A = 3.354e-03; float B = 2.5698e-4; void setup() { Serial.begin(9600); } void loop() { Vo = analogRead(ThermistorPin); R2 = R1 * 1/(1023.0 / (float)Vo - 1.0); //Calculate resistance of thermistor from voltage divider math. T = (1.0 / (A + B*log(R2/R1) )); // Calculate temperature using datasheet formula. T = T - 273.15; //Convert from Kelvin to Celcius. Serial.print("Temperature: "); Serial.print(T); Serial.println("C"); delay(500); } ``` <!-- ### Thermocouple -->
